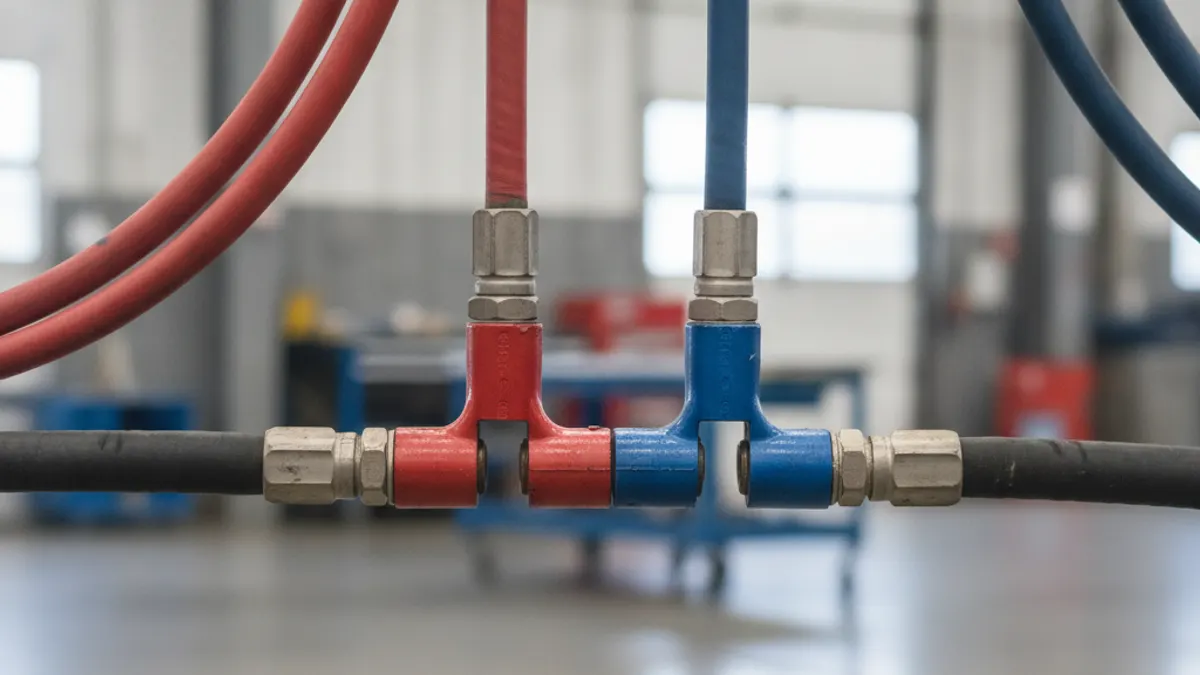

Gladhands and Air Lines: Connecting the Tractor to the Trailer

Gladhands — also written glad hands — are the palm-shaped coupling fittings that join the tractor's air lines to the trailer. A combination vehicle uses two lines: the service (control) line, which carries the driver's brake-application signal, and the emergency (supply) line, which feeds a steady supply of air to charge the trailer reservoir and release its spring brakes. Couple them wrong or run them with a bad seal, and you get a trailer that won't brake, spring brakes that drag, or a constant air leak the compressor can never keep up with.

The lines are colour coded so you can tell them apart at a glance: blue for service, red for emergency/supply on North American equipment (European ISO 1728 coupling heads use red for supply and yellow for the service/control line). Getting this right is the whole game — the rest of this page covers the seals, the correct hook-up procedure, and how to run down a leak at the coupling.

Service line vs. emergency line: what each one does

The two lines do very different jobs, and understanding the split is the key to diagnosing trailer air problems.

The emergency line is the safety half of the system. As long as it is charged, the trailer's spring brakes stay released and the trailer reservoir stays full. If that line loses pressure — a broken hose, a pulled gladhand, a trailer breakaway — the tractor protection system vents it, the trailer's spring brakes slam on, and the trailer stops. That fail-safe behaviour is why it's called the emergency line, and it's why the tractor protection valve is wired into it.

The service line only carries air when you press the brake pedal or pull the trailer hand valve. That signal reaches the trailer's relay valve, which uses the trailer's own reservoir air to apply the brake chambers quickly, without the driver's signal having to travel the full length of the trailer.

The gladhand and its seal (glad hand seals)

A gladhand is a two-piece coupling: two identical palms lock together with a quarter-turn twist, and a rubber seal (polymer packing ring) seated in each palm presses face-to-face to make an airtight joint. Parts catalogues list these as glad hand seals, gladhand seals or packing rings interchangeably. That seal is the single most common failure point in the whole coupling. It's a wear item — rubber that gets crushed thousands of times, dragged through road grime, and baked by summer heat.

Symptoms of a bad gladhand seal:

• An audible hiss at the coupling that you can feel with a wet hand or hear when the system is fully charged.
• The air compressor cycling more often than normal because it's chasing a leak it can't fill.
• Slow trailer charge-up, or the trailer's spring brakes being reluctant to release.
• Water and dirt getting past the seal and into the lines, which loads up the air dryer and can foul downstream valves.
• A leak that appears or gets worse in cold weather, when hardened rubber no longer conforms to the mating seal, or one that comes and goes as the hoses flex in a turn.

Types of glad hand seals

Every glad hand seal does the same job, but they are not all made the same way. The main differences are the material and whether anything is built into the seal:

• Standard rubber seals — the basic moulded packing ring fitted to most gladhands. Cheap and stocked everywhere, but rubber hardens, cracks and takes a permanent set with age, ozone and cold.
• Polyurethane (polymer) seals — a tougher material that resists abrasion and tearing and stays more flexible in the cold. They cost a little more and usually last longer between changes.
• Seals with a built-in screen — some seals, and separate gladhand filter inserts, carry a small screen that stops grit from being blown into the trailer lines. Keep the screen clean; a clogged one restricts airflow to the trailer.

Most standard gladhands take a common seal, but polarized (anti-crossover) and some specialty couplings use their own design. Match the replacement to the coupling maker's part number rather than assuming one seal fits every gladhand.

When to replace a glad hand seal

There is no fixed mileage interval for gladhand seals: they are replaced on condition. Look at both seals every time you couple a trailer and replace any seal that shows:

• Cracks, splits or torn edges on the sealing face.
• A flattened, hard or glazed surface — the seal no longer stands proud of the palm face, so there is nothing left to compress into a seal.
• A loose, twisted or partly pulled-out fit in its groove.
• No seal at all — seals are easily lost when a coupling is pulled apart under pressure.
• A leak that continues after the palms have been separated, wiped clean and re-coupled.

Because seals cost so little, some fleets simply renew them at scheduled maintenance instead of waiting for a leak. Check them more often in winter, when cold, stiff rubber is most likely to let air past.

How to replace a glad hand seal

1. Park with the spring brakes applied and work only on an uncoupled gladhand. Pulling the trailer air-supply knob out first closes off the tractor-side lines, so the coupling you work on is not under pressure. Never pry a seal out of a coupled, charged gladhand.
2. Pry the old seal out from its edge with a small flat screwdriver or a seal pick. Do not gouge the groove or the palm face — a scratch there becomes a leak path of its own.
3. Clean grit, old rubber and corrosion out of the groove and off the palm face. While it is clean, inspect the gladhand body: a cracked, bent or badly worn palm, or a damaged locking flange, means the gladhand itself must be replaced, and a new seal will not cure the leak.
4. Press the new seal in by hand, working around its circumference until the base is fully seated in the groove, sits evenly and is not twisted. If you use a lubricant to ease fitting, use only one the seal maker approves; petroleum-based grease can make some seal materials swell.
5. Check the mating seal on the other gladhand. The joint is made face to face, so a new seal pressed against a hardened one can still leak; replace both if the other is worn.
6. Re-couple, charge the system and leak-test with soapy water. The emergency (supply) coupling is pressurised as soon as the system is charged, but the service (control) line only carries air while the brakes are applied, so test that coupling with the brakes held on — by a helper on the foot valve or with the trailer hand valve.

Seals are cheap and take only a few minutes to change, so carry spares in the cab — a torn seal on a cold morning will otherwise strand a trailer that won't build air.

How to connect the air lines

Coupling is straightforward once the seals are good and you respect the colour coding. Work in a logical order and confirm the trailer charges before you move.

1. Chock the trailer or confirm its spring brakes are set before you start.
2. Inspect both gladhand seals on the tractor and the trailer. Replace any that are cracked, flattened, or missing.
3. Connect blue to blue (service) and red to red (emergency). Line the palms up, press together, and twist to lock. You'll feel them seat.
4. Push the trailer air-supply (red) knob in on the dash to charge the emergency line. The trailer reservoir fills and the trailer spring brakes release.
5. Let the system come up to full pressure — a fully charged system runs around 120 psi — and listen for leaks at both couplings.
6. Do a tug test and a brake-application check before you pull. Apply the trailer brakes with the hand valve and confirm they hold.

When you drop the trailer, reverse the logic: set the trailer spring brakes first by pulling the trailer air-supply (red) knob, which vents the emergency line and applies the trailer's parking brakes, then uncouple the gladhands. Never uncouple a charged trailer that isn't parked on its own spring brakes.

Crossed lines: the mistake that leaves you with no trailer brakes

Because the two gladhands are physically identical, it is possible to cross them — put service air into the emergency port and vice versa. On older or non-colour-keyed fittings this is a real hazard. A crossed connection sends supply air down the service line instead of charging the trailer reservoir: a trailer with spring brakes then has no air to release them and will not move, but an older trailer without spring brakes can be driven off with no trailer brakes at all even though everything looks connected. Always match colour to colour, and if a trailer's gladhands aren't marked, trace the lines before you trust them.

Many fleets fit anti-crossover (polarized) gladhands — the service palm is offset or a different shape so it physically won't mate with the emergency palm. If you run mixed equipment, they're cheap insurance.

Hoses, dummy couplers, and hanger hardware

The air lines themselves are the coiled or straight hoses that run from the tractor's cab-mounted gladhands back to the trailer. Look for:

• Chafing and rub-through where the coils drag on the deck plate, the fifth wheel, or the frame. A worn spot becomes a blowout.
• Kinks and ice in cold weather. Water that got past the air dryer collects in low spots and freezes, choking the line.
• Dummy (dead-end) couplers on the tractor and trailer. Parking the gladhands on a dummy coupler keeps the seals clean and the lines free of road spray when the trailer is dropped.

Keep the hoses supported by their tender or hanger so they don't drag on the catwalk, and route them so a hard turn doesn't yank a gladhand loose. A gladhand that pops apart under way vents the emergency line and sets the trailer brakes — safe, but not something you want happening in traffic.

Finding a coupling leak

If the compressor is short-cycling or the system won't hold pressure overnight, the gladhands are an easy first suspect. Charge the system fully, shut the engine off, and brush soapy water on each coupling and along the hoses — bubbles show the leak. Check the seal faces first, then the hose crimps and the gladhand-to-hose fittings. A coupling leak is one branch of a broader problem; if you've ruled out the gladhands and the trailer is still bleeding down, work through why an air brake system loses pressure methodically rather than throwing parts at it.

Gladhands and their seals are the cheapest, most-ignored parts in the air system, yet a torn ring can idle a truck as surely as a failed compressor. Inspect them at every trailer swap, carry spare seals, and never assume blue-to-blue and red-to-red got connected right just because the palms locked.
